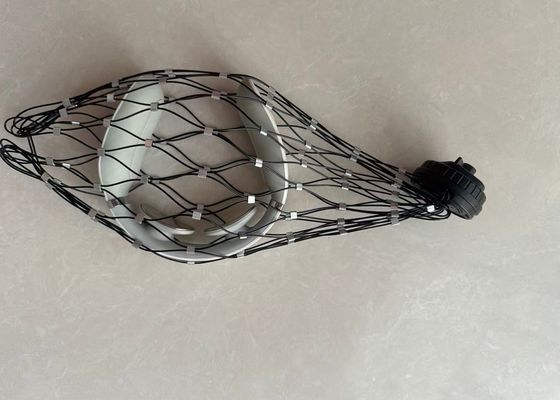

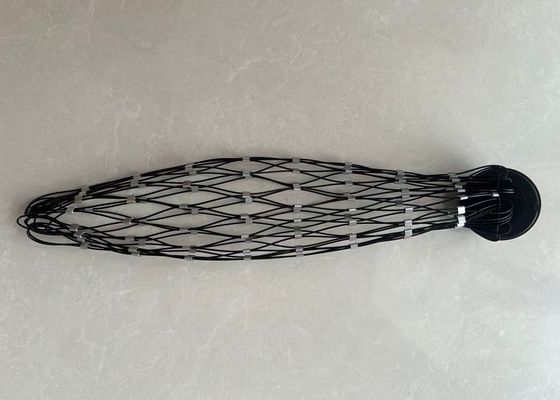

Stainless Steel Wire Rope Protection Mesh is assembled by seamless ferrules and stainless steel wire rope, forming a diamond mesh when stretched at 60° angle (90° angle available as an option).
Constructed from 316L 7*7 stainless steel cable wire, the braided wire lanyard provides exceptional strength, flexibility, and cut resistance. The wire rope features two main strand structures:
Ferrules are typically made of stainless steel, with options for aluminum, copper, and other materials. Custom surface treatments including oxidation or spray coating are available upon request.
| Item No. | Cable Diameter | Mesh Opening Size (W * H) |
|---|---|---|
| BZ-32120F | 1/8 inch (3.2mm) | 4.75 * 8.23 inch |
| BZ-32102F | 1/8 inch (3.2mm) | 4 * 6.9 inch |
| BZ-3290F | 1/8 inch (3.2mm) | 3.55 * 6.15 inch |
| BZ-3276F | 1/8 inch (3.2mm) | 3 * 5.2 inch |
| BZ-3251F | 1/8 inch (3.2mm) | 2 * 3.46 inch |
| BZ-24102F | 3/32 inch (2.4mm) | 4 * 6.9 inch |
| BZ-2490F | 3/32 inch (2.4mm) | 3.55 * 6.15 inch |
| BZ-2476F | 3/32 inch (2.4mm) | 3 * 5.2 inch |
| BZ-2460F | 3/32 inch (2.4mm) | 2.4 * 4.16 inch |
| BZ-2451F | 3/32 inch (2.4mm) | 2 * 3.46 inch |
Our stainless steel rope mesh is ideal for:
